110HP farm tractor TT1104 4*4 4wheel drive Agricultural farm equipment

Product Categories

Shandong Katop Machinery Co.,Ltd.

Contact Now

Name: 110HP farm tractor TT1104 44 4wheel drive Agricultural farm equipment
Brand: KATOP
Price: 1 USD

Brand Name : KATOP

Model Number : TT1104

Certification : CE

Place of Origin : Shandong

MOQ : 8 units

Payment Terms : L/C, T/T

Supply Ability : 300 UNITS per month

Delivery Time : 15 days

Packaging Details : Iron frame in 20GP container

Engine : YUCHAI 4105 TURBO

Power : 80.8KW(110HP)

Driving Type : 4*4

Hydraulic Valve : 2-Way Valve

Dimension : 4593x2050x2810mm

Clutch : Dry-type, Double-acting

Gear box : 16F+8R

Size of Tire : Front:11.2-24 Rear: 16.9-34

Wheel base : 2195mm

Min.Ground Clearance : 379mm

Contact Now

MODEL	TT1104
DRIVE TYPE	4*4
ENGINE
ENGINE	YUCHAI 4105 TURBO
OIL TANK(L)	240
Rated speed (r/min)	2300
ENGINE RATED POWER(kw)	80.8
MIN OIL CONSUPTION(g/kw·h)	≤242
Minimum fuel consumption at full load( L/h)	16.97
TRANSMASSION
CLUTCH	DRY , DOUBLE CLUTCH
PTO SPPED(rpm)	540/1000 or 760/1000(optional)
SHAFT	16F+8R
HYDRUALIC SYSTEM
HYDRUALIC VALVE	2-Way
Three point linkage
lifting force at 610mm KN	＞15

Technical parameters
Dimension LxWxH mm	4593x2050x2810
WHEEL BASE(mm)	2195
FRONT TREAD(mm)	1610
REAR TREAD(mm)	1620-2020 (usual 1620)
MIN GROUND CLEARENCE(mm)	379
FRONT TYRE	11.2-24
REAR TYRE	16.9-34
EXW	$18470

110HP farm tractor TT1104 4*4 4wheel drive Agricultural farm equipment

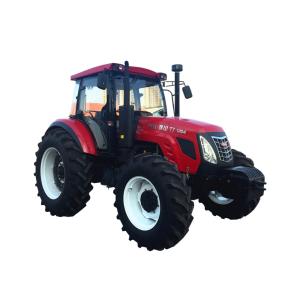

110HP farm tractor TT1104 4*4 4wheel drive Agricultural farm equipment Images
